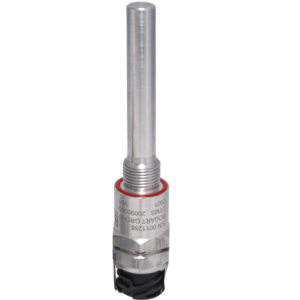

DTMS 20090000 L=90,0mm

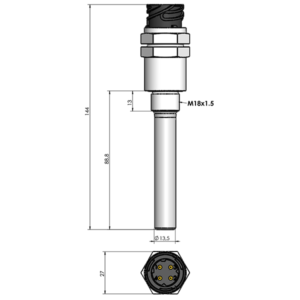

Technical Data:

Specification:	ISO 16844-3:2004
Case: steel	1.0037(S235JR) AL. EN AW-2007/3.1645
Operating voltage:	6,5V … 9V
Current consumption:	max. 15mA
Operating temperature:	-40ºC … +135ºC
Storage Temperature	-45ºC … +150ºC
Humidity:	10% … 95%
Frequency (max.):	> 1kHz
Signal (pin 3):	rectangular
Output signal (pin 3):	real-time signal
Output signal (pin 4):	bi-directional interface
Protection:	ISO 60529 IP 64
Tightness:	0,5 bar, 120°C, 100h
Outputs short circuit protection:	28V, 1min
Vibration resistance:	30g
Impact resistance :	300g

Cables:

Connection of Motion Sensor:	bayonet plug:                ISO 15170 (4-pin)
Connection to Vechicle Unit (VU):	plug:                               AMP 8-pin type B
Cable type:	spiral-4 quad,                (FLRYYW 4×0,75
Turn of cable:	max. 66 mm/rev
	min. 15 rev. /m
Operating temperature	-40ºC … +105ºC
1- black	+UE
2- brown	-U0V
3- blue	d speed signal (real time)
4- white	a data signal
